ATG Tape is an adhesive transfer tape where the adhesive is “reverse wound” meaning the adhesive is wound on the outside of the roll, ideal for use in an adhesive transfer gun where the tape is threaded around the roller at the nose of the gun adhesive side out.

To operate the ATG gun you squeeze the trigger, releasing the roller and then press the nose against the surface to be glued and pull back. The roller rolls out the double-sided adhesive, peeling up the liner as it goes, threading it back into the gun.

Video Tutorial

Step by Step

Step #1

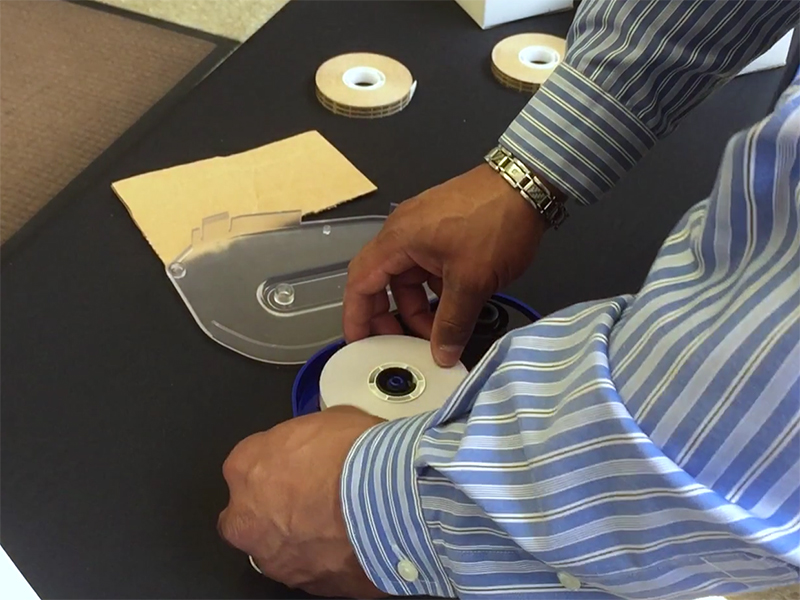

Starting with the dispenser open, position the roll in the unwind portion of the dispenser. Make sure that the roll is notched into place.

Step #2

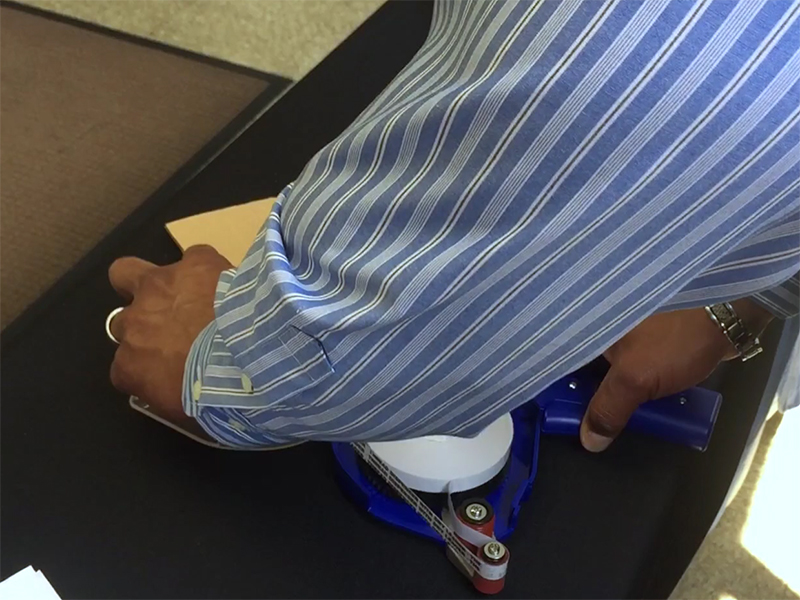

Holding the handle and the trigger with one hand, begin to pull the leader (starter part of the ATG Tape) with your other hand. Pull the leader over the first rubber roller. Pull the leader under the second rubber roller. Continue to pull the leader over the roll of ATG.

Step #3

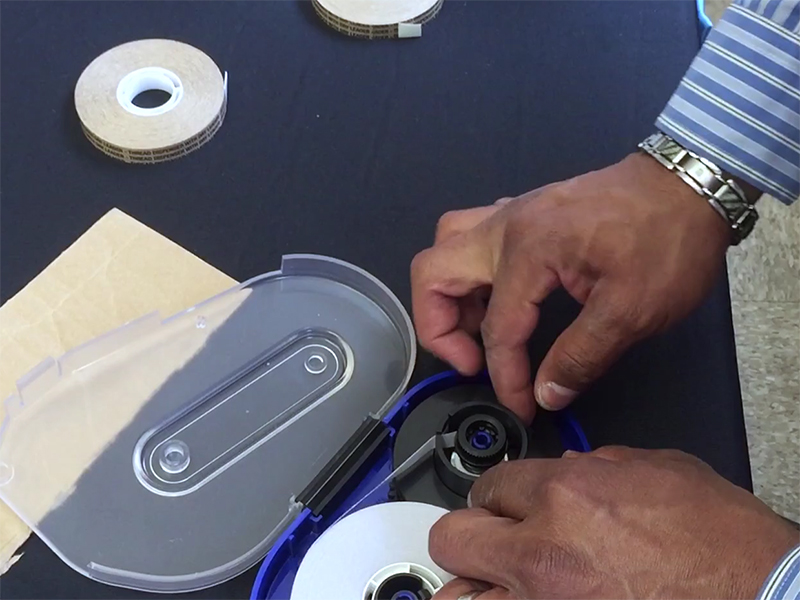

Secure the leader on the rewind portion of the dispenser.

Step #4
Close the dispenser.
Step #5

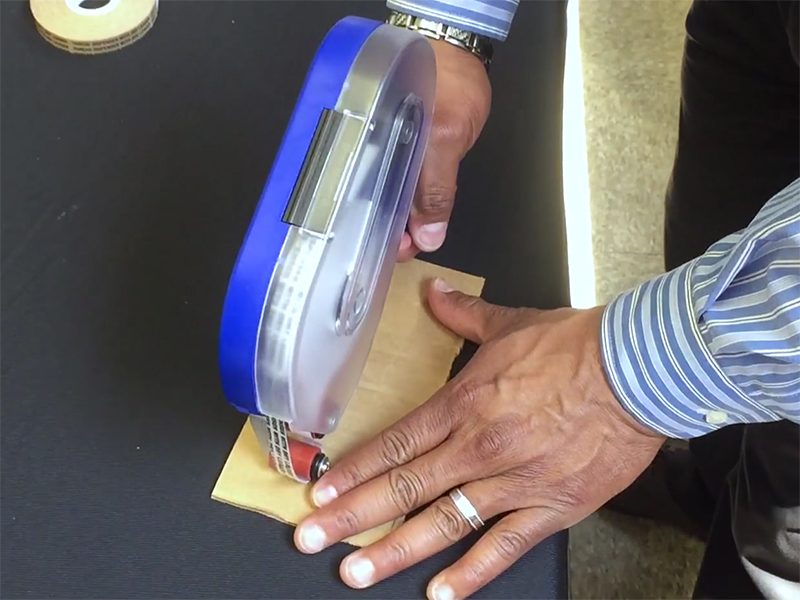

Squeeze the trigger, releasing the roller and then press the nose against the surface to be glued and pull back.

Tips from the Pros

• If you’re new to loading an ATG Gun, you may want to pull the leader before you begin loading the gun.
• Remember to have the sticky side down when you load the gun!

Pro Tapes stocks a variety of tapes on a 1″ I.D. Plastic Core suitable for use with the Pro ATG HD Dispenser. Pro 154 ATG is 2 mils thick and available in 36 or 60 yards in length and 1/2″, 3/4″ and 1/4″ widths. Pro 156 ATG is 5 mils thick and available in 18 or 36 yards in length and 1/2″, 3/4″ and 1/4″ widths. Both the Pro 154 ATG and Pro 156 ATG tapes have a heat resistance of up to 250ºF. Pro 410 ATG is 4.33 mils thick and available in 1/2″ width and 33 yards in length. Pro 410 ATG tape is heat resistant up to 212ºF.
