Technical Specs
SpecificationsMIL-T-47012
Backing:
Copper Foil
Adhesive:
Acrylic, Conductive
Liner:
Polyethylene Coated Paper
Total Thickness:
3.5 mils
Temperature Range:
-40°F to 325°F
Elongation:
4

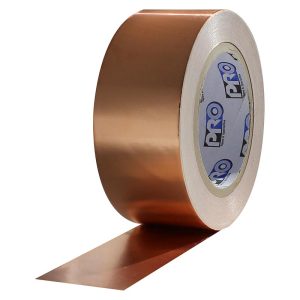

Pro® 882L
Conductive Copper Foil TapeDescription:
Pro® 882L is a conductive copper foil tape.Pro® 882L is a conductive copper foil tape. Pro® 882L construction permits conductivity along, as well as through, tape and adhesive. Pro® 882L is used as a solderable for circuit repair on PC boards. Pro® 882L is used for electromagnetic and radio frequency Product Applications: Features:
- Good Abrasion Resistance
- Good Adhesion
- Good Chemical Resistance
- Good Moisture Resistance
- Good Solvent Resistance
- Highly Conformable
- Low Temperature Application
- Outdoor Use
- Quick Stick
- Short Term - High Temperature Resistance
- UV Resistant
- Waterproof Backing
- Weather Resistant
- Copper foil is highly conformable to both irregular and curved surfaces.
- Solderable surfaces allows fast and easy fabrication of parts.
- Conductive adhesive offers excellent shielding effectiveness.
- Liner allows the tape to be die cut into pieces.
- Copper
