Technical Specs
Backing:
1 mils, Polyester Film
Adhesive:
2.0 mil, Silicone
Total Thickness:
3 mils
Temperature Range:
356°F (short term)
Tensile Strength:
25 lbs per inch
Elongation:
100
Adhesion to Steel:
30 oz per inch

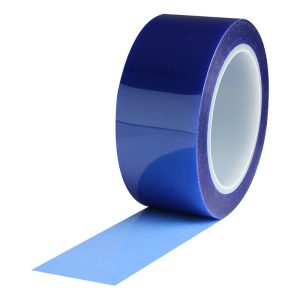

Pro® 981
1 mils Blue Polyester Film TapeDescription:
Pro® 981 1 mils Blue Polyester TapePro® 981 is a 1 mils polyester film, single coated with a silicone pressure sensitive adhesive. General purpose masking in powder coating applications. This product is engineered for applications where no/low residue is a requirement. Pro® 981 designed to perform in all phases of masking operations for printed circuit board production. Pro® 981 protects circuitry from splashes and chemical fumes. Pro® 981 can also be used as a silicone splicing tape. Product Applications: Features:
- Easy Unwind
- Good Chemical Resistance
- Good Solvent Resistance
- Highly Conformable
- Quick Stick
- Short Term - High Temperature Resistance
- Highly conformable.
- Provides no-leak seals.
- Controlled unwind.
- Enhances manual or machine application.
- Polyester film substrate.
- Allows for easy removal without danger of breakage or bath contamination.
- Blue
