Technical Specs
SpecificationsUL Certified
Backing:
2 mils, Polyimide
Adhesive:
Silicone
Total Thickness:
3.7 mils
Temperature Range:
up to 500°F
Tensile Strength:
50 lbs per inch
Adhesion to Steel:
25 oz per inch

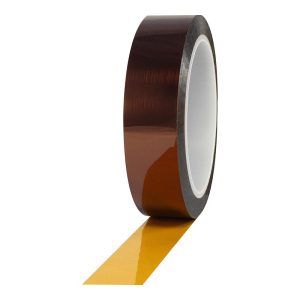

Pro® 952
2 mils Polyimide Film TapeDescription:
Pro® 952 2 mils Polyimide/Kapton TapePro® 952 is a polyimide film and silicone adhesive designed for high temperature masking applications, including the protection of printed circuit board gold finger contacts during wave soldering. It is used in electrical insulation applications meeting class H requirements. Product Applications: Features:
- Clean Removal
- Easy Unwind
- Good Abrasion Resistance
- Good Adhesion
- Good Chemical Resistance
- Good Moisture Resistance
- Good Solvent Resistance
- Good Tensile Strength
- Low Temperature Application
- Short Term - High Temperature Resistance
- UV Resistant
- Waterproof Backing
- Removes cleanly without adhesive residue after exposure to heat/chemical.
- Excellent electrical insulation. Wide operating temperature range up to 500°F.
- Thin and conformable enabling masking of uneven surfaces.
- Excellent resistance to solvents, acids, oils
- Amber
