Technical Specs
SpecificationsUL Certified, Material conforms to mil spec: MIL-P-46112 Type I
Backing:
1 mils, Polyimide Film
Adhesive:
Silicone, thermosetting
Total Thickness:
2.5 mils
Temperature Range:
up to 500°F
Tensile Strength:
30 lbs per inch
Elongation:
70
Adhesion to Steel:
25 oz per inch

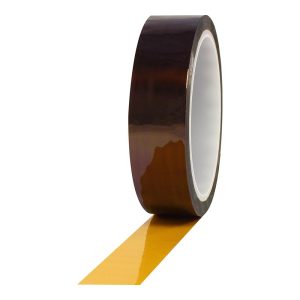

Pro® 950AS
1 mils Anti-Static Thermosetting Polyimide Film TapeDescription:
Pro® 950AS Anti-Static Polyimide Film TapePro® 950AS is ideally suited for continuous high temperature operating conditions. Used as a ground, barrier and phase insulation in high performance torroidal coils and high frequency motors, also for end turn bundling and connection insulation in small motors. Used for cross-over insulation and outer wraps on bobbin wound coils for large rotating machines to bundle conductors and reinforce insulation. Also used as wave solder masking of printed circuit boards and in electronics, where anti-static is necessary. Product Applications: Features:
- Clean Removal
- Easy Unwind
- Good Abrasion Resistance
- Good Adhesion
- Good Chemical Resistance
- Good Moisture Resistance
- Good Solvent Resistance
- Good Tensile Strength
- Low Temperature Application
- Short Term - High Temperature Resistance
- UV Resistant
- Waterproof Backing
- Pro® 950AS ESD combines a thin conformable backing with outstanding puncture, tear and abrasion resistance at high temperature levels.
- Silicone adhesive provides solvent resistance and outstanding high temperature adhesion.
