Technical Specs
SpecificationsUL510 Recognized, Material conforms to mil spec: MIL-P-46112 Type I
Backing:
1 mils, Polyimide Film
Adhesive:
Silicone, thermosetting
Total Thickness:
2.5 mils
Tensile Strength:
24 lbs per inch
Elongation:
50
Adhesion to Steel:
20 oz per inch

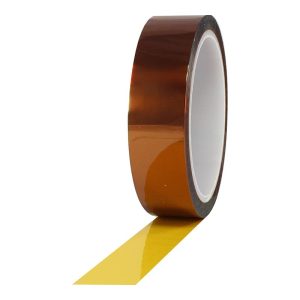

Pro® 950
1 mils Thermosetting Polyimide Film TapeDescription:
Pro® 950 Polyimide Film TapePro® 950 is an ideally suited for continuous high temperature operating conditions. Pro® 950 is used as a ground, barrier and phase insulation in high performance torridal coils, high frequency motors. Pro® 950 can be used for end turn bundling and connection insulation in small motors. Pro® 950 is also used for cross-over insulation and out wraps on bobbin wound and form wound coils for large rotating machines to bundle conductors and reinforce insulation. Pro® 950 can also be used as wave solder masking of printed circuit boards. Product Applications: Features:
- Clean Removal
- Easy Unwind
- Good Abrasion Resistance
- Good Adhesion
- Good Chemical Resistance
- Good Moisture Resistance
- Good Solvent Resistance
- Good Tensile Strength
- Low Temperature Application
- Short Term - High Temperature Resistance
- UV Resistant
- Waterproof Backing
- Pro® 950 combines a thin conformable backing with outstanding puncture, tear and abrasion resistance at high temperature levels.
- Thermosetting adhesive provides solvent resistance and outstanding high temperature adhesion.
- Other
