Technical Specs
SpecificationsUL Listed, ASTM Approved, CSA Certified and RoHS 2011/65/EU Compliant. CSA Certification; Standard C22.2 No.197-M1983 “PVC Insulating Tape,” File LR 48769. Meets A-A-55809.
Backing:
PVC
Adhesive:
Rubber based
Total Thickness:
7 mils
Tensile Strength:
15 lbs per inch
Elongation:
250
Adhesion to Steel:
28 oz per inch
Adhesion to Backing:
28 oz per inch

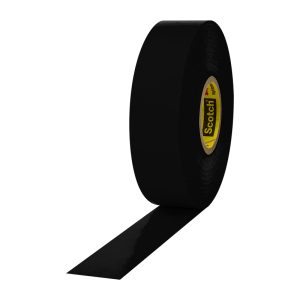

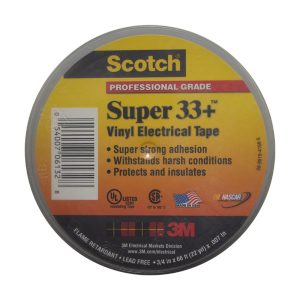

3M™ Super 33+
Flame Retardant Electrical Tape (7 mils)Description:
3M™ / Scotch® Super 33+™ Vinyl Electrical Tape is a premium grade, 7 mils thick, flame-retardant all-weather vinyl-insulating tape for cable splices up to 600V. It is designed to perform continuously between a temperature range of 0–220°F (-18–105°C).3M™ / Scotch® Super 33+™ is a professional electrical insulation for all wire and cable splices rated up to 600 volts and up to 105°C (220°F). It is a ideal choice for providing a protective jacket for low- and high-voltage buses, as well as harness cables/wires. This tape is compatible with solid, dielectric cable insulations, rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins. Product Applications: Features: Benefits:
- Provides high resistance to UV rays, abrasion, moisture, alkalis, acids, corrosion, and varying weather conditions.
- It is designed to perform continuously between a temperature range of 0–220°F (-18–105°C).
- Compatible with rubber and synthetic splicing compounds.
- Flame Retardant.
- All Weather.
- Black
