Technical Specs
SpecificationsUL Listed - UL 510 Standard “Insulating Tape” (product category OANZ), File E129200;
meets UL 510 labeling for “flame-retardant” for vinyl electrical tape. CSA Certification; Standard. C22.2 No. 197-M1983 “PVC Insulating Tape,” File LR 48769. RoHS 2002/95/EC.
Backing:
PVC
Adhesive:
Rubber
Total Thickness:
7 mils
Tensile Strength:
17 lbs. per inch
Elongation:
225
Adhesion to Steel:
20 oz per inch
Adhesion to Backing:
20 oz per inch
3M™ 35

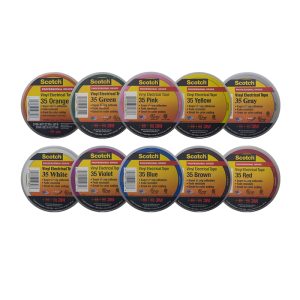

Colored Electrical Tape (7 mils)Description:
3M™ / Scotch® Vinyl Electrical Tape 35 is a 7 mils polyvinyl chloride (PVC) color coding tape. 3M™ / Scotch® Tape 35 operates over a wide range of temperatures up to 221°F (105°C); applies smoothly and conforms well above 32°F (0°C).3M™ / Scotch® Vinyl Electrical Tape 35 is an outstanding electrical and mechanical properties make this tape excellent for use in phase identification, color coding of motor leads and piping systems, and for marking safety areas. It can also be used for protecting electrical conductors, motor leads and piping from moisture, alkalis, acids, corrosion, abrasion and weather. Product Applications: Features: Benefits:
- 3M™ / Scotch® Tape 35 operates over a wide range of temperatures - up to 221°F (105°C);
- Applies smoothly and conforms well above 32°F (0°C).
- Flame Retardant.
- All Weather.
- Blue
- Brown

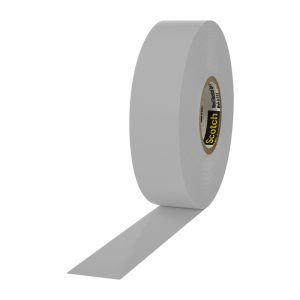

- Grey

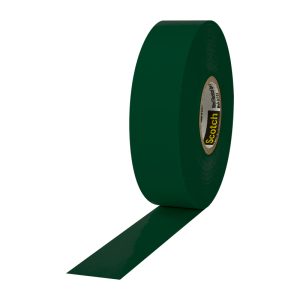

- Green

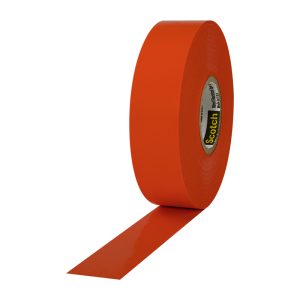

- Orange

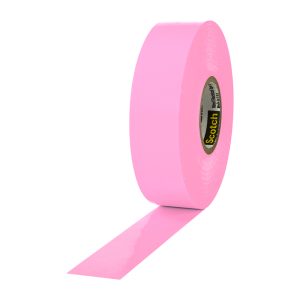

- Pink

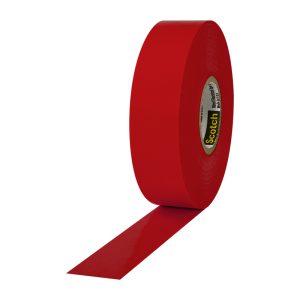

- Red
- Violet

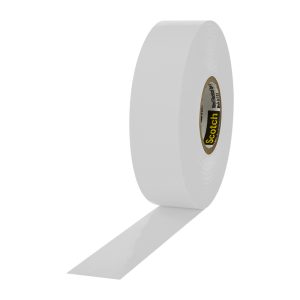

- White

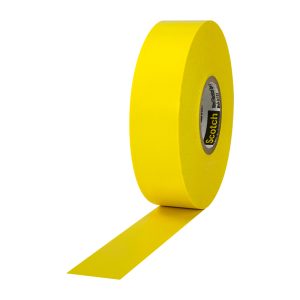

- Yellow
